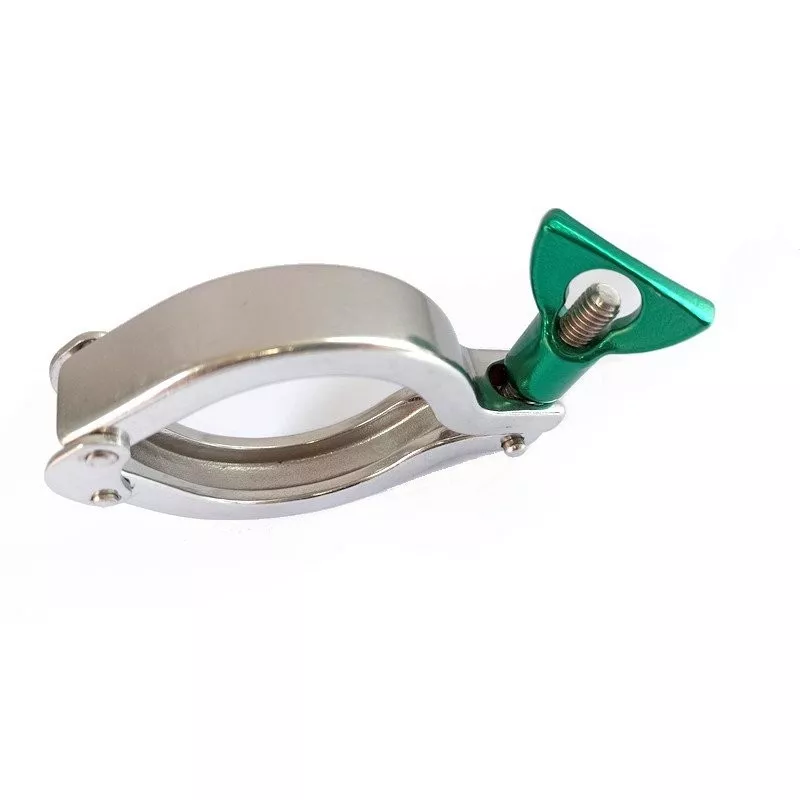

Standard SMS clamp with ceramic coated nut
AISI 304 - EU 1.4301 (Standard EN 10213)
Nut with ceramic coating
Standard ISO clamp machined in stainless steel 304 (EN 10213), double joint, with coloured ceramic coated nut, for SMS clamp connection, Ø 50.5 mm to 119 mm.
We also offer a range of ceramic coated clamps, contact us for more information.
D = ferrule head diameter
To use our quote request tool, please create an account, enter your postal address and log in (free and without obligation).
| Ask | |||||||
|---|---|---|---|---|---|---|---|
| CSCB25-ECVI | 65.2 | 50.5 | 33 | 20 | Violet | Login | Login |
| CSCB25-ECB | 65.2 | 50.5 | 33 | 20 | Bleu | Login | Login |
| CSCB25-ECR | 65.2 | 50.5 | 33 | 20 | Rouge | Login | Login |
| CSCB25-ECVE | 65.2 | 50.5 | 33 | 20 | Vert | Login | Login |
| CSCB51-ECVE | 78.7 | 64 | 30 | 21 | Vert | Login | Login |
| CSCB51-ECVI | 78.7 | 64 | 30 | 20 | Violet | Login | Login |
| CSCB51-ECB | 78.7 | 34 | 30 | 20 | Bleu | Login | Login |
| CSCB51-ECR | 78.7 | 64 | 30 | 20 | Rouge | Login | Login |
| CSCB63-ECVE | 92 | 77.5 | 27 | 22 | Vert | Login | Login |
| CSCB63-ECVI | 92 | 77.5 | 27 | 22 | Violet | Login | Login |
| CSCB63-ECB | 92 | 77.5 | 27 | 20 | Bleu | Login | Login |
| CSCB63-ECR | 92 | 77.5 | 27 | 20 | Rouge | Login | Login |
| CSCB76-ECVE | 105 | 91 | 23 | 13 | Vert | Login | Login |
| CSCB76-ECVI | 105 | 91 | 23 | 13 | Violet | Login | Login |
| CSCB76-ECB | 105 | 91 | 23 | 13 | Bleu | Login | Login |
| CSCB76-ECR | 105 | 91 | 23 | 13 | Rouge | Login | Login |
| CSCB104-ECVE | 133 | 119 | 23 | 13 | Vert | Login | Login |
| CSCB104-ECVI | 133 | 119 | 23 | 13 | Violet | Login | Login |
| CSCB104-ECB | 133 | 119 | 23 | 13 | Bleu | Login | Login |
| CSCB104-ECR | 133 | 119 | 23 | 13 | Rouge | Login | Login |
