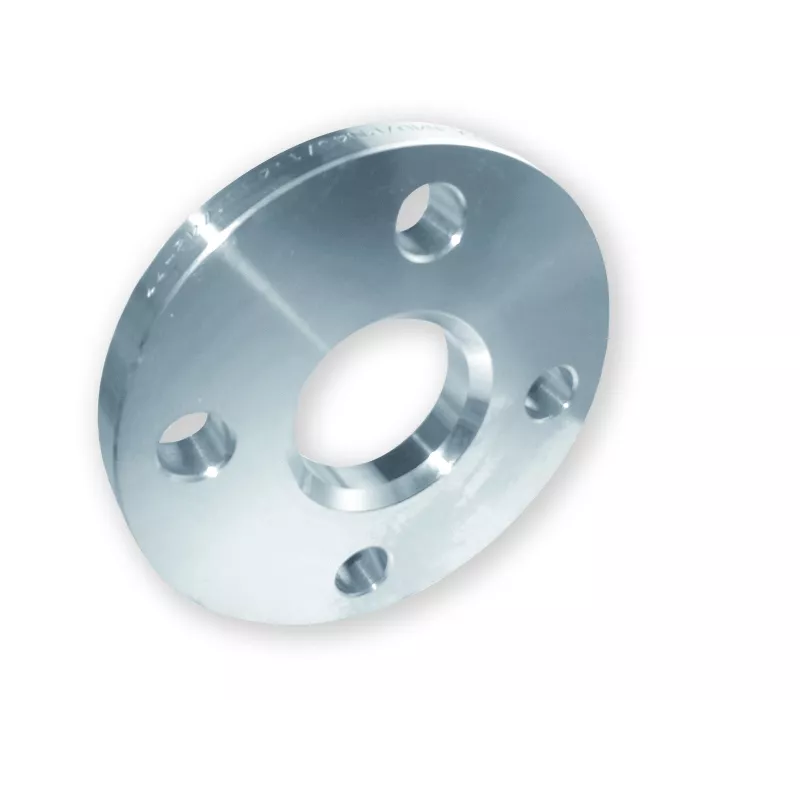

Rotating flange - PN10/16 - PN10 - Type 02A - 304L
AISI 304L (1.4306)
Flat faced rotary flange type 02A (45° chamfer on bore) EN-1092, pressure rating PN10/16 (DN 15 to 150) or PN10 (DN 200), machined in stainless steel 304L, to be used on industrial pipelines.
Data sheet
- AISI
- 304L
To use our quote request tool, please create an account, enter your postal address and log in (free and without obligation).
| Ask | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| BPT4L15 | 15 | 14 | 65 | 95 | 4 | 14 | 24 | Login | Login |
| BPT4L20 | 20 | 14 | 75 | 105 | 4 | 14 | 30 | Login | Login |
| BPT4L25 | 25 | 16 | 85 | 115 | 4 | 14 | 36 | Login | Login |
| BPT4L32 | 32 | 16 | 100 | 140 | 4 | 18 | 46 | Login | Login |
| BPT4L40 | 40 | 16 | 110 | 150 | 4 | 18 | 54 | Login | Login |
| BPT4L50 | 50 | 16 | 125 | 165 | 4 | 18 | 65 | Login | Login |
| BPT4L65 | 65 | 16 | 145 | 185 | 4 | 18 | 81 | Login | Login |
| BPT4L80 | 80 | 18 | 160 | 200 | 8 | 18 | 94 | Login | Login |
| BPT4L100 | 100 | 18 | 180 | 220 | 8 | 18 | 119 | Login | Login |
| BPT4L125 | 125 | 18 | 210 | 250 | 8 | 18 | 145 | Login | Login |
| BPT4L150 | 150 | 18 | 240 | 285 | 8 | 22 | 173 | Login | Login |
| BPT4L200 | 200 | 20 | 295 | 340 | 8 | 22 | 225 | Login | Login |
